Hydraulic cylinder with integrated linear system for feedback of the piston positioning of the hydraulic cylinder. Operating range of active cylinder movement up to 6 m.
Tilt angle sensor, for monitoring the position of the Support over the wellhead and ensuring alignment of the hydraulic cylinder and polished rod
Optional installation of a rod rotator
Measurement of dynamic fluid level in the well
Shelter equipped with a hydroelectric station and an intelligent electronic control system (IECS) based on PLC and a frequency converter with or without a built-in recovery function (optional)
Innovative hydraulic SRP actuator "Geron +"
A modern, promising, highly efficient hydraulic drive of a deep-well sucker-rod pump, successfully competes with mechanical pumping machines.
Герон может поднять нефть с глубины до 6000 метро
Максимальная нагрузка выше 20 тонн.
Герон подбирает индивидуальную программу для скважины, учитывая её уникальные особенности.
Максимальная глубина до 6000 метров
Подходит для сложных скважин
Герон может поднять нефть с глубины до 6000 метро
Key Benefits
OIL PRODUCTION INCREASE
by means of low-debit wells stimulation

REDUCED OPERATIONAL COSTS
due to intelligent electronic control system, intelligent mode, extended inspection interval (every 3 months) and maintenance (once every six months)

ELECTRICITY SAVING
due to the frequency converter, which recuperates electricity when the rod moves down

ANALYSIS OF DATA IN REAL TIME MODE AND ADJUSTMENT OF PRODUCTION REMOTELY BY USING TELEMETRY
by controlling the dynamic level to achieve maximum filling of the pump; Automatically adjust the maximum effective swing mode, taking into account the dynamic level of the well;

INSTALLATION AND COMMISSIONING WITHIN 4 HOURS

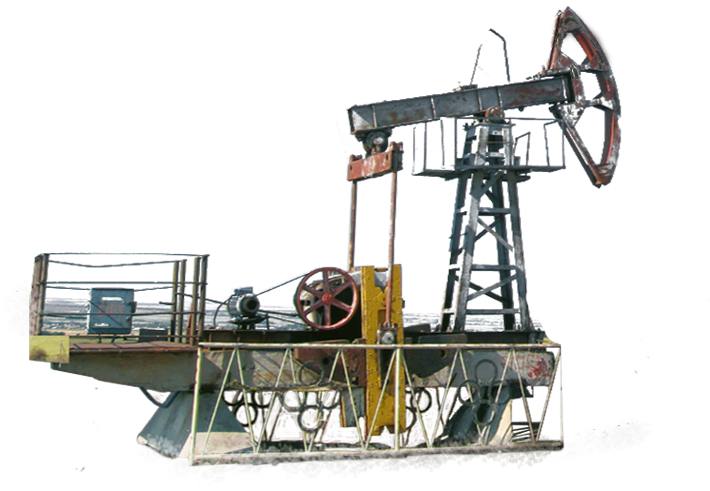

Advantages of hydraulic drive "Geron +" in comparison with other mechanical units

Заполните анкету участника бесплатных опытно-промысловых испытаний
Отправьте заявку и наш специалист свяжется с вами в ближайшее время
В каком регионе планируете провести испытания нашей установки?
Укажите ближайший крупный город к вашему месторождению
С помощью какое технологии сейчас происходит добыча?
Дата начала испытаний
Advantages of hydraulic drive "Geron +" in comparison with other mechanical units
Climatic modifications
Equipment works effectively in any climatic conditions
Localization of implemented projects
Our drive can work effectively in any climatic conditions
Patents, certificates
The hydraulic drives "Geron" intellectual property is protected by patents of the Russian Federation, have certificate of conformity and permission of Rostekhnadzor for use in the oil and gas industry
Our clients
Our drive is able to work effectively in any climatic conditions
More products

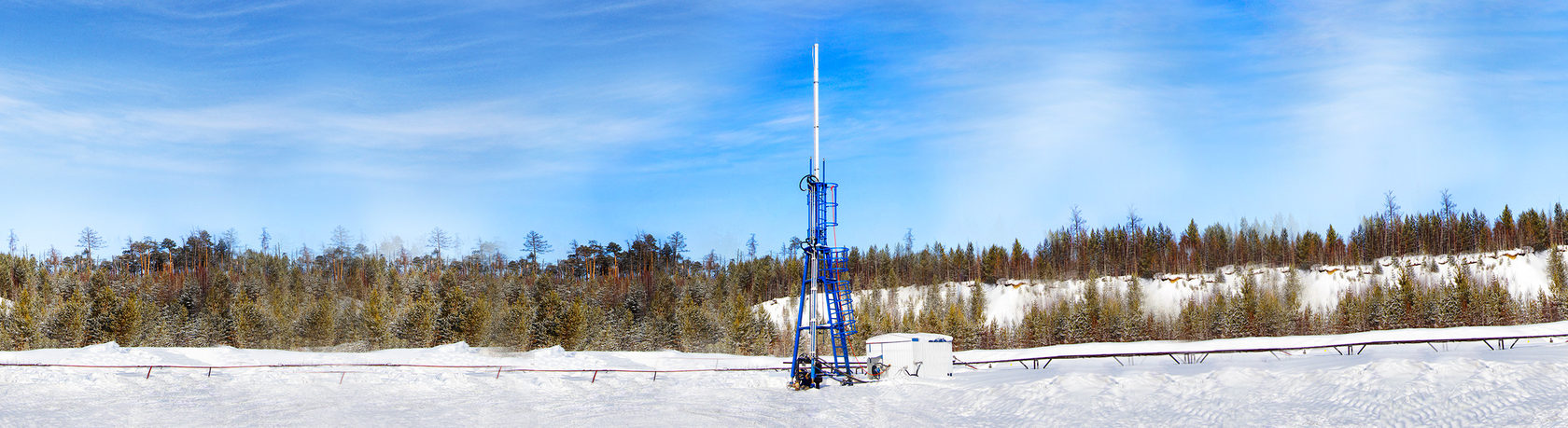

Nagyan, Khanty-Mansi Autonomous Region - Ugra, Russia
The recorded minimum temperature at the site was -55C. The drive successfully continued operation

Comparative characteristics:

• The production rate at this well with a conventional oil pump was 6 m3 / day.

• After the installation of Konkov's unit Geron+, the production increased to 8- 9 m3 / day.


Balkanabad, Turkmenistan
The recorded maximum temperature at the site was +45C. The drive successfully continued operation

Production increased by 30% after replacing of mechanical unit with hydraulic actuator Geron+

Comparative characteristics:

• The production rate at this well with a conventional oil pump was 4 m3 / day.

• After the installation of Konkov's unit Geron+, the production increased to 9 m3 / day.

Балканабад, Туркменистан
Зафиксированная максимальная температура, при которой нефтепривод Конькова успешно продолжает работать в этом регионе: +45С

После установки нефтегидропривода Конькова дебет добычи пластовой жидкости увеличился на 30%

Сравнительные характеристики:
  • Дебет добычи пластовой жидкости на этой скважине обычной нефтекачалкой составлял 4 м3/сут.
  • После установки нефтегидропривода Конькова дебет добычи пластовой жидкости составляет 9 м3/сут.
